Ensure Optimal Performance in All Conditions with Backer Calesco Vision System Heaters

For vision systems to function reliably, they need an unobstructed field of view in any weather. Backer Calesco heaters prevent mist, condensation, or ice buildup, ensuring clear and safe driving.

Our lens heaters can be mounted around the lens barrel or directly on the front for optimal performance. Positioning the heater close to the lens ensures quick and effective deicing.

Heaters for front view cameras are crucial for systems like lane assist, collision warning, and distance maintenance, ensuring clear vision for safe driving.

RADAR heaters are essential in wet, snowy, or icy conditions, preventing incorrect readings and system malfunctions. Developed with Lund University, our constant wattage heater minimizes signal loss while delivering exceptional heating across a wide range of frequencies.

Customized heaters for every specific vision system.

Typical applications

Image of a camera heater

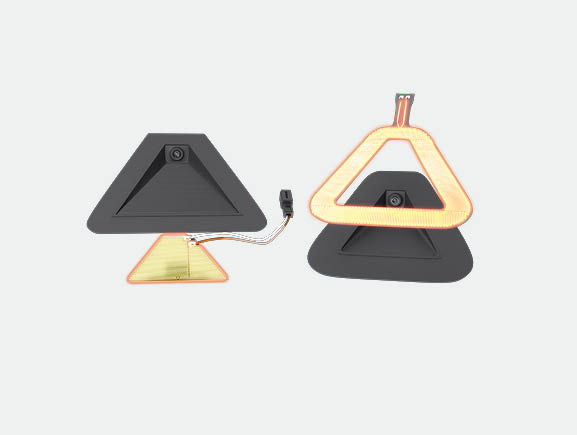

Front view camera heater

Our camera heaters can be mounted on the backside of the straylight cover using convection to heat up the camera field of view. Or mounted on the windshield, using heat transfer in the glass to clear camera field of view.

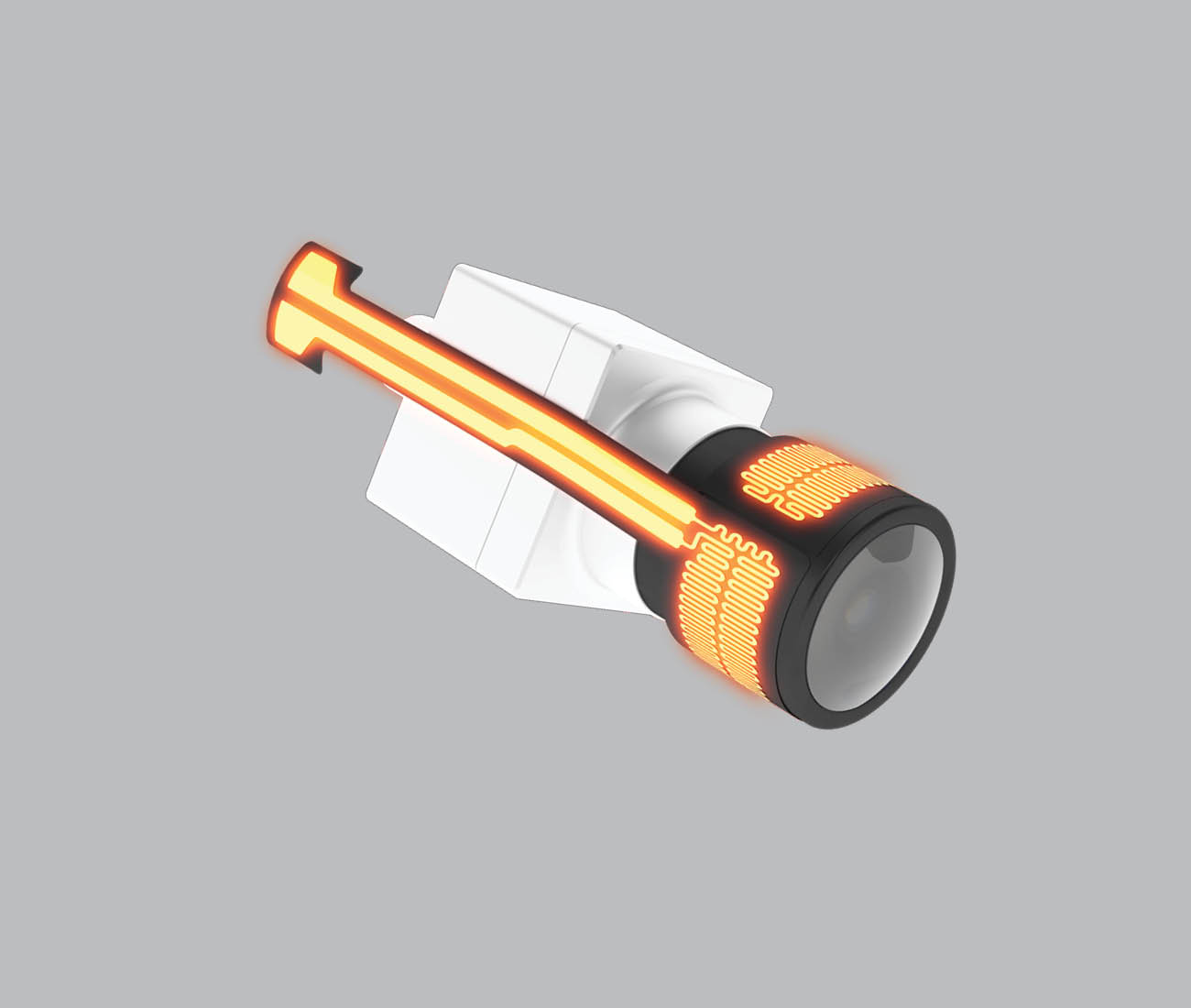

Side view / Lens heater

Commonly used for blind spot monitoring or cross traffic alert. Mounted inside the camera housing.

Night vision foil heater

Night vision / Lens heater

Front facing IR camera for detection and alert about pedestrians or wild-life in darkness/low visibility. Can also be delivered with integrated temperature control mounted directly on the heater.

Radar foil heater

Radar heater

RADAR heaters are needed in wet & snowy conditions. Defogging and deicing of the radar field of view minimises incorrect readings, and avoids malfunction. Backer Calesco has, in close cooperation with Lund university, developed a robust constant wattage heater with minimal signal losses and great heating performance for a wide range of frequencies.

Wiper blade foil heater

Wiper blade heater

A number of flexible foils assembled directly in the wiper and in the stand-by position for efficiency against icing and freezing of the wiper and the washer fluid nozzles, which makes it a safety application.

Image of a rear view heater

Rear-view mirror heater

We provide constant wattage and PTC heaters for specific rear-view mirrors, meeting most car manufacturers' specifications. Our heaters offer high and low power options based on the maximum permitted glass temperature.

Foil heater for headlights

Headlight heater

LEDs in headlights have no power loss, which leads to poor light exchange/visibility. This is solved by having a heater mounted on the base of the headlight, using heat convection for demisting.

Download

  • Automotive Heating Solutions.pdf pdf
    5.4MB, 2024-10-21 11:09:48
  • ADAS Heating Solutions.pdf pdf
    1.8MB, 2024-10-21 11:10:10
  • Rear-view mirror heaters.pdf pdf
    164.1kB, 2023-09-25 11:19:19
